    产品名称：导轨滚轮轴承
    型号：
    发布时间：2014-01-28 16:59:08
    详细说明：

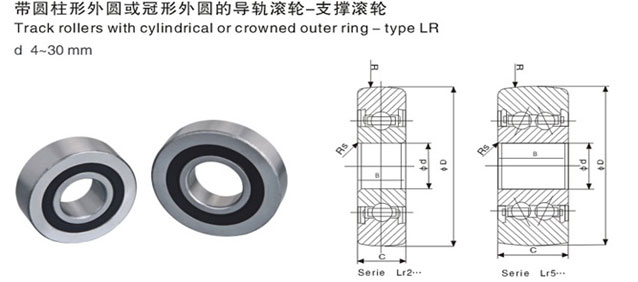

    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR604 NPP 4 13 4 10
    LR604 NPPU 4 13 4 10
    LR604 KDD 4 13 4 10
    LR604 KDDU 4 13 4 10
    LR605 NPP 5 16 5 10
    LR605 NPPU 5 16 5 10
    LR605 KDD 5 16 5 10
    LR605 KDDU 5 16 5 10
    LR606 NPP 6 19 6 10
    LR606 NPPU 6 19 6 10
    LR606 KDD 6 19 6 10
    LR606 KDDU 6 19 6 10
    LR607 NPP 7 22 6 10
    LR607 NPPU 7 22 6 10
    LR607 KDD 7 22 6 10
    LR607 KDDU 7 22 6 10
    LR608 NPP 8 24 7 20
    LR608 NPPU 8 24 7 20
    LR608 KDD 8 24 7 20
    LR608 KDDU 8 24 7 20
    LR6000 NPP 10 28 8 20
    LR6000 NPPU 10 28 8 20
    LR6000KDD 10 28 8 20
    LR6000KDDU 10 28 8 20



    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR6001NPP 12 30 8 30
    LR6001NPPU 12 30 8 30
    LR6001KDD 12 30 8 30
    LR6001KDDU 12 30 8 30
    LR200NPP 10 32 9 50
    LR200NPPU 10 32 9 50
    LR200KDD 10 32 9 50
    LR200KDDU 10 32 9 50
    LR201NPP 12 35 10 50
    LR201NPPU 12 35 10 50
    LR201KDD 12 35 10 50
    LR201KDDU 12 35 10 50
    LR201-15NPP 12 35 15 70
    LR201-15NPPU 12 35 15 70
    LR201-15KDD 12 35 15 70
    LR201-15KDDU 12 35 15 70
    LR202NPP 15 40 11 70
    LR202NPPU 15 40 11 70
    LR202KDD 15 40 11 70
    LR202KDDU 15 40 11 70
    LR202-14NPP 15 40 14.4 80
    LR202-14NPPU 15 40 14.4 80
    LR202-14KDD 15 40 14.4 80
    LR202-14 KDDU 15 40 14.4 80



    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR203NPP 17 47 12 110
    LR203NPPU 17 47 12 110
    LR203KDD 17 47 12 110
    LR203KDDU 17 47 12 110
    LR204NPP 20 52 14 150
    LR204NPPU 20 52 14 150
    LR204KDD 20 52 14 150
    LR204KDDU 20 52 14 150
    LR205NPP 25 62 15 230
    LR205NPPU 25 62 15 230
    LR205KDD 25 62 15 230
    LR205KDDU 25 62 15 230
    LR206NPP 30 72 16 330
    LR206NPPU 30 72 16 330
    LR206KDD 30 72 16 330
    LR206KDDU 30 72 16 330
    LR207NPP 35 80 17 400
    LR207NPPU 35 80 17 400
    LR207KDD 35 80 17 400
    LR207KDDU 35 80 17 400
    LR208NPP 40 85 18 450
    LR208NPPU 40 85 18 450
    LR208KDD 40 85 18 450
    LR208KDDU 40 85 18 450



    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR209NPP 45 90 19 500
    LR209NPPU 45 90 19 500
    LR209KDD 45 90 19 500
    LR209KDDU 45 90 19 500
    LR50/5NPP 5 17 7 10
    LR50/5NPPU 5 17 7 10
    LR50/5KDD 5 17 7 10
    LR50/5KDDU 5 17 7 10
    LR50/6NPP 6 19 9 20
    LR50/6NPPU 6 19 9 20
    LR50/6KDD 6 19 9 20
    LR50/6KDDU 6 19 9 20
    LR50/7NPP 7 22 10 20
    LR50/7NPPU 7 22 10 20
    LR50/7KDD 7 22 10 20
    LR50/7KDDU 7 22 10 20
    LR50/8NPP 8 24 11 30
    LR50/8NPPU 8 24 11 30
    LR50/8KDD 8 24 11 30
    LR50/8KDDU 8 24 11 30
    LR5000NPP 10 28 12 30
    LR5000NPPU 10 28 12 30
    LR5000KDD 10 28 12 30
    LR5000KDDU 10 28 12 30



    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR5001NPP 12 30 12 30
    LR5001NPPU 12 30 12 30
    L5001KDD 12 30 12 30
    LR5001KDDU 12 30 12 30
    LR5002NPP 15 35 13 50
    LR5002NPPU 15 35 13 50
    LR5002KDD 15 35 13 50
    LR5002KDDU 15 35 13 50
    LR5003NPP 17 40 14 70
    LR5003NPPU 17 40 14 70
    LR5003KDD 17 40 14 70
    LR5003KDDU 17 40 14 70
    LR5004NPP 20 47 16 120
    LR5004NPPU 20 47 16 120
    LR5004KDD 20 47 16 120
    LR5004KDDU 20 47 16 120
    LR5005NPP 25 52 16 150
    LR5005NPPU 25 52 16 150
    LR5005KDD 25 52 16 150
    LR5005KDDU 25 52 16 150
    LR5006NPP 30 62 19 250
    LR5006NPPU 30 62 19 250
    LR5006KDD 30 62 19 250
    LR5006KDDU 30 62 19 250



    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR5007NPP 35 68 20 300
    LR5007NPPU 35 68 20 300
    LR5007KDD 35 68 20 300
    LR5007KDDU 35 68 20 300
    LR5200NPP 10 32 14 70
    LR5200NPPU 10 32 14 70
    LR5200KDD 10 32 14 70
    LR5200KDDU 10 32 14 70
    LR5201NPP 12 35 15.9 80
    LR5201NPPU 12 35 15.9 80
    LR5201KDD 12 35 15.9 80
    LR5201KDDU 12 35 15.9 80
    LR5202NPP 15 40 15.9 110
    LR5202NPPU 15 40 15.9 110
    LR5202KDD 15 40 15.9 110
    LR5202KDDU 15 40 15.9 110
    LR5203NPP 17 47 17.5 170
    LR5203NPPU 17 47 17.5 170
    LR5203KDD 17 47 17.5 170
    LR5203KDDU 17 47 17.5 170
    LR5204NPP 20 52 20.6 230
    LR5204NPPU 20 52 20.6 230
    LR5204KDD 20 52 20.6 230
    LR5204KDDU 20 52 20.6 230



    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR5205NPP 25 62 20.6 340
    LR5205NPPU 25 62 20.6 340
    LR5205KDD 25 62 20.6 340
    LR5205KDDU 25 62 20.6 340
    LR5206NPP 30 72 23.8 510
    LR5206NPPU 30 72 23.8 510
    LR5206KDD 30 72 23.8 510
    LR5206KDDU 30 72 23.8 510
    LR5207NPP 35 80 27 660
    LR5207NPPU 35 80 27 660
    LR5207KDD 35 80 27 660
    LR5207KDDU 35 80 27 660
    LR5208NPP 40 85 30.2 750
    LR5208NPPU 40 85 30.2 750
    LR5208KDD 40 85 30.2 750
    LR5208KDDU 40 85 30.2 750
    LR5302NPP 15 47 19 150
    LR5302NPPU 15 47 19 150
    LR5302KDD 15 47 19 150
    LR5302KDDU 15 47 19 150
    LR5303NPP 17 52 22.2 210
    LR5303NPPU 17 52 22.2 210
    LR5303KDD 17 52 22.2 210
    LR5303KDDU 17 52 22.2 210



    带圆柱形外圆或冠形外圆的导轨滚轮-支撑滚轮
    Track Rollers With Cylindrical or Crowned Outer Ring
    Bearing No. d D B Mass(KG)
    LR5304NPP 20 62 22.2 340
    LR5304NPPU 20 62 22.2 340
    LR5304KDD 20 62 22.2 340
    LR5304KDDU 20 62 22.2 340
    LR5305NPP 25 72 25.4 500
    LR5305NPPU 25 72 25.4 500
    LR5305KDD 25 72 25.4 500
    LR5305KDDU 25 72 25.4 500
    LR5306NPP 30 80 30.2 670
    LR5306NPPU 30 80 30.2 670
    LR5306KDD 30 80 30.2 670
    LR5306KDDU 30 80 30.2 670
    LR5307NPP 35 90 34.9 970
    LR5307NPPU 35 90 34.9 970
    LR5307KDD 35 90 34.9 970
    LR5307KDDU 35 90 34.9 970
    LR5308NPP 40 100 36.5 1200
    LR5308NPPU 40 100 36.5 1200
    LR5308KDD 40 100 36.5 1200
    LR5308KDDU 40 100 36.5 1200
