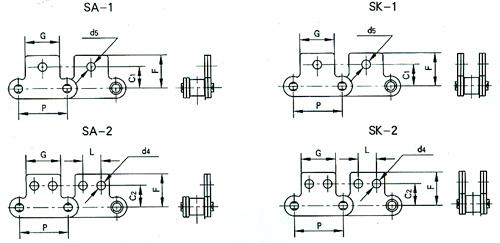

产品名称：双节距输送链附件-1

型号：

发布时间：2014-01-29 09:22:43

详细说明：

DIN ISO	ANSI	P	G	L	F	W	h4	d4
链号Chain No.	链号Chain No.
mm	mm	mm	mm	mm	mm	mm
C208A	C2040	25.4	19.1	9.5	25.4	39.6	9.1	3.4
C208AL	C2040
C208B		25.4	23.2	12.7	25.4	39.6	9.1	4.5
C208BL
C210A	C2050	31.75	23.8	11.9	31.8	49	11.1	5.5
C210AL	C2052
C212A	C2060	38.1	28.6	14.3	42.9	67.8	14.7	5.5
C212AL	C2062
C212AH	C2060H	38.1	28.6	14.3	42.9	67.8	14.7	5.5
C212AHL	C2062H
C216A	C2080	50.8	38.1	19.1	55.6	87.8	19.1	6.8
C216AL	C2082
C216AH	C2080H	50.8	38.1	19.1	55.6	87.8	19.1	6.8
C216AHL	C2082H
C220A	C2100	63.5	47.6	23.8	66.6	107.5	23.4	8.4
C220AL	C2102
C220AH	C2100H	63.5	47.6	23.8	66.6	107.5	23.4	9.2
C220AHL	C2102H
C224A	C2120	76.2	57.2	28.6	79.3	121.4	27.8	11
C224AL	C2122
C224AH	C2120H	76.2	57.2	28.6	79.3	121.4	27.8	11
C224AHL	C2122H
C232A	C2160	101.6	76.2	38.1	104.7	151.6	36.5	13.1
C232AL	C2162
C232AH	C2160H	101.6	76.2	38.1	104.7	151.6	36.5	13.1
C232AHL	C2162H
